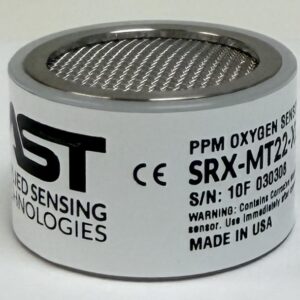

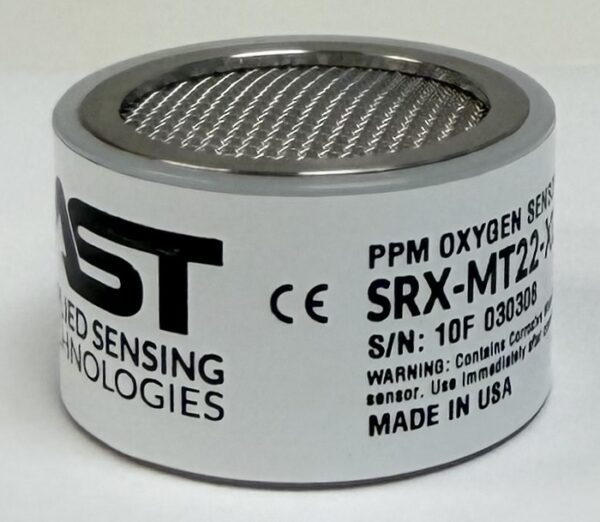

SRX-MT22 PPM Oxygen Sensor Replaces Teledyne B-2C
Advanced Sensor Technology
SRX-MT22 PPM O2 Sensor replaces Teledyne B-2C trace ppm oxygen sensor part number C06689, AII model PSR-12-223, AMI model T-2 and Panametrics model OX-1 PPM O2 sensors. This PPM O2 sensor can measure oxygen down to 0.1 PPM level in inert atmosphere and gaseous hydrocarbon streams. Recovery from air to 10 PPM in under 30 minutes. Ideal for measuring low PPM oxygen in inert, gaseous hydrocarbon and hydrogen gas streams. Coiled shape anode eliminates the possibility of air bubble entrapment in typical crushed Pb granules anode thus resulting spike free oxygen signal. Sensor is designed, developed and manufactured in the USA.
AST Model SRX-MT22 Replaces
- Teledyne Class B-2C
- AII Model PSR-12-223
- AMI Model T-2
- GE Model OX-1
Related Products
Related products
-

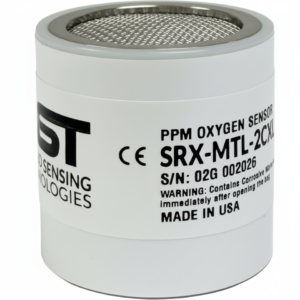

PPM O2 Sensors - IndustrialAST SRX-MTL-2C PPM O2 Sensor – Replaces Teledyne L-2C
SRX-MTL-2C PPM O2 Sensor – Replaces Teledyne L-2C trace ppm O2 sensor part number C06689. The expected life of SRX-MTL-2C is 24 months. This PPM O2 sensor can measure oxygen…
-
PPM O2 Sensors - IndustrialSRX-MT22-XL PPM O2 Sensor Replaces Teledyne B-2CXL
SRX-MT22-XL PPM O2 sensor replaces Teledyne B-2CXL PPM oxygen sensor. Extremely smooth surface of sensing cathode produces excellent signal stability and signal to noise ration. SRX-MT22-XL PPM O2 sensor exhibits…
-
PPM O2 Sensors - IndustrialSRZ-MA100-M PPM Oxygen Sensor
SRZ-MA100-M PPM Oxygen Sensor is a drop in replacement to AII Model XLT-12-100-M O2 sensor. This sensor is recommended for gas streams containing reactive gases such as CO2. Its innovative…
-
PPM O2 Sensors - IndustrialSRX-MA100-4 PPM Oxygen Sensor
SRX-MA100-4 PPM Oxygen Sensor is a replacement to Analytical Industries GPR-12-100-4 PPM oxygen sensor. Its innovative design with electro-etched sensing cathode provides with extremely smooth sensing surface for excellent signal…
-
PPM O2 Sensors - IndustrialInsta O2-XL PPM Sensor – Replaces Teledyne Insta Trace-XL B73592
Insta O2-XL PPM Sensor – Replaces Teledyne InstaTrace-XL B73592 sensor. AST Model Insta O2-XL is the only sensor with same form-fit-function as Teledyne Insta Trace-XL sensor, no spacer needed. Proprietary…
-
PPM O2 Sensors - IndustrialSRX-MA333 PPM O2 Sensor Replaces GPR-12-333
SRX-MA333 PPM O2 sensor replaces GPR-12-333 PPM O2 Sensor. Current output of SRX-MA333 PPM O2 sensor in air is well above 600 uA thus giving a good signal to noise…
-
PPM O2 Sensors - IndustrialSRX-MA100-M PPM Oxygen Sensor
SRX-MA100-M PPM Oxygen Sensor is designed for applications where sensor can be exposed to air frequently during use. The lower limit of analysis is 0-100 PPM but quickly recovers from…
-
PPM O2 Sensors - Industrial
AST SRZ-MA100-4 PPM Oxygen Sensor
SRZ-MA100-4 PPM Oxygen Sensor is a galvanic type micro fuel cell specific to oxygen and replaces AII Model XLT-12-100-4 oxygen sensor. This sensor, with its proprietary electolyte formulation, offers excellent compatibility…
-

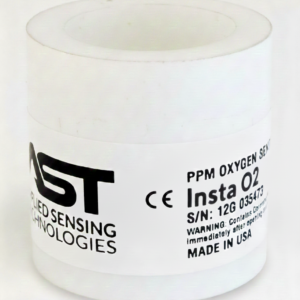

PPM O2 Sensors - IndustrialInsta O2 PPM Sensor – Replaces Teledyne Insta Trace B71875
